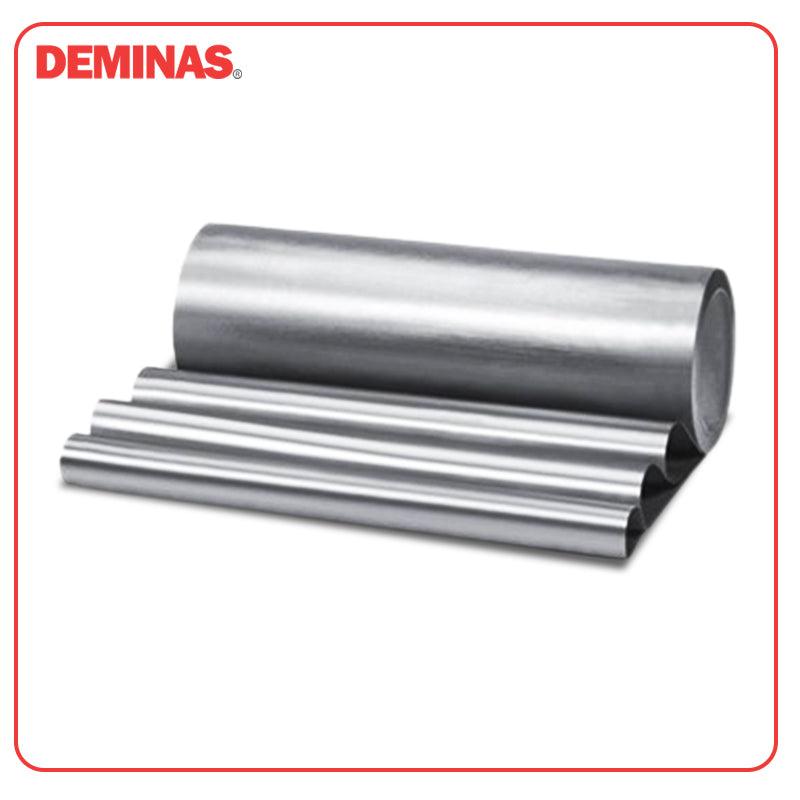

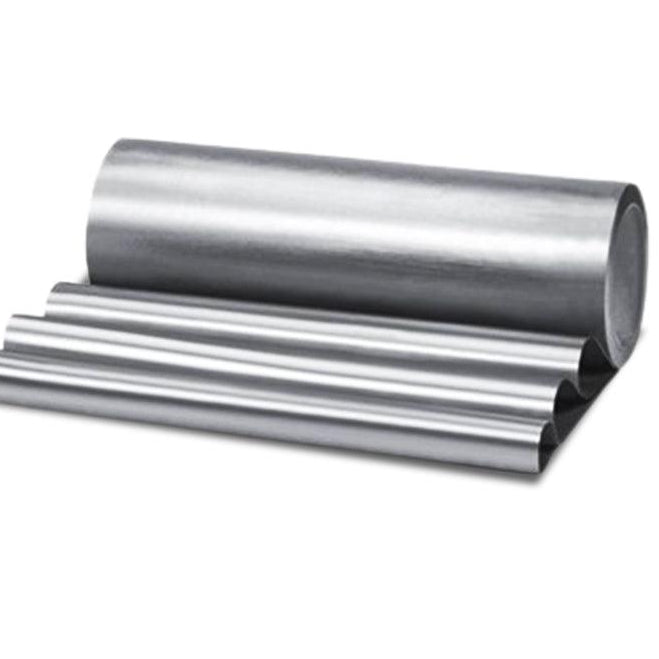

Graphite Roll - 1000mm Width, 50 Meter Length
Pure DEMIGRAPH® graphite foil rolled from natural graphite flakes without binders, supplied in 1000 mm width and 50 m length. Rated from -195°C to 450°C (up to 650°C in steam), sulphur-free with no ageing effect. Used to manufacture spiral wound, kammprofile and corrugated gaskets, braided packings and rings, with grades for industrial, corrosive and nuclear service.
Regular price
£175.00 GBP
Regular price
Sale price
£175.00 GBP
In stock · ships same day before 2pm
Need a different size or bulk quantity?
Request a cut-to-size quote →
Specifications
Material
Pure graphite foil (99%+ carbon, sulphur-free)
Temperature
-195°C to 450°C
Steam temp
Up to 650°C
Standard
DIN 3535-6 / ASTM F2168 (grade-dependent)
Sheet size
1000 mm x 50 m roll
Full description
Demigraph® Graphite Foil
Demigraph® Graphite Foil is crafted from natural graphite flakes through advanced chemical and thermal processing, followed by precision rolling on automated lines without the use of binders. The production process involves continuous, non-destructive monitoring of density, thickness, and material homogeneity both along and across the rolling line, ensuring the highest quality of the foil and the products derived from it.
Industrial and High-Spec Grades:
- Industrial Grades: Offer a dependable and cost-effective solution for various applications.
- High-Spec Grades: Designed for oxidizing, corrosive, and high-temperature environments, as well as adherence to nuclear industry standards.
Key Features and Properties
- High Purity: Up to 99.9% carbon content.
- Corrosion-Free: All grades are sulfur-free.
- Longevity: No aging effect, suitable for long-term applications.
- High Tensile Strength: 5.0 MPa (725 psi) for high-volume production.
Applications
- Manufacturing of spiral wound, kammprofile, and corrugated gaskets, braided packings, and rings.
- Utilized in power generation, chemical, oil, and gas industries.
- Suitable for oxidizing and corrosive environments (Demigraph® C).
- Applicable in the nuclear industry (Demigraph® D).
Operating Range
- Temperature: -195°C to 450°C (-319°F to 842°F); in steam up to 650°C (1202°F).
Available Grades of Demigraph® Graphite Foil (Tensograph®)
| Parameter | Grade B (Industrial) | Grade G (High-purity) | Grade D (Nuclear) | Grade C (Anti-oxidation & Anti-corrosion) | Grade T (High-purity & Oxidation-resistant) | Grade 1T (Ultra-low losses) |
|---|---|---|---|---|---|---|
| Carbon, % | > 98.0 | > 99.0 | > 99.85 | > 98.0 (99.0*) | > 99.0 | > 99.0 |
| Ash, % | < 2.0 | < 1.0 | < 0.15 | < 2.0 | < 1.0 | < 1.0 |
| Sulfur, ppm | < 200 | < 100 | < 50 | < 100 | < 100 | < 100 |
| Chlorine, ppm | < 40 | < 40 | < 20 | < 40 | < 20 | < 20 |
| Fluorine, ppm | < 20 | < 10 | < 10 | < 10 | < 10 | < 10 |
| Total Halogens, ppm | < 200 | < 100 | < 50 | < 200 | < 100 | < 100 |
| Tensile Strength, MPa | > 4.5 (700 psi) | > 4.5 (700 psi) | > 4.0 (700 psi) | > 5.0 (725 psi) | > 5.0 (725 psi) | > 5.0 (725 psi) |
| Compressibility, % | > 40 | > 40 | > 40 | > 40 | > 40 | > 40 |
| Recoverability, % | > 10 | > 10 | > 8 | > 10 | > 10 | > 10 |
| Oxidation & Corrosion Inhibitor | - | - | - | Yes | Yes | Yes |
| Weight Loss (670°C, %/h) | < 12 | < 12 | - | < 4 | < 3 | < 1 |
| Compliance | DVGW DIN 3535-6 | BAM; ASTM F2168 Class 2 (B) | PMUC norms; GS RC PVE 011; BAM; ASTM F2168 Class 2 (B) | MESC 85/203; EN 14772 §6.7; ASTM F2168 Class 2 (A); DIN-28091-4 | MESC 85/203; EN 14772 §6.7; ASTM F2168 Class 2 (A); DIN-28091-4 | MESC 85/203; EN 14772 §6.7; ASTM F2168 Class 2 (A); DIN-28091-4 |
