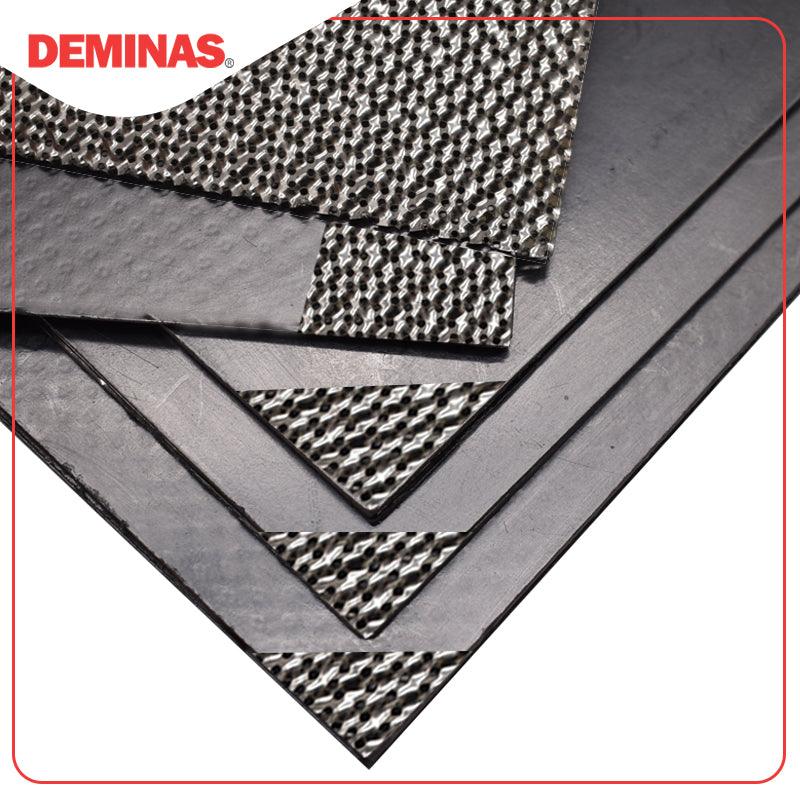

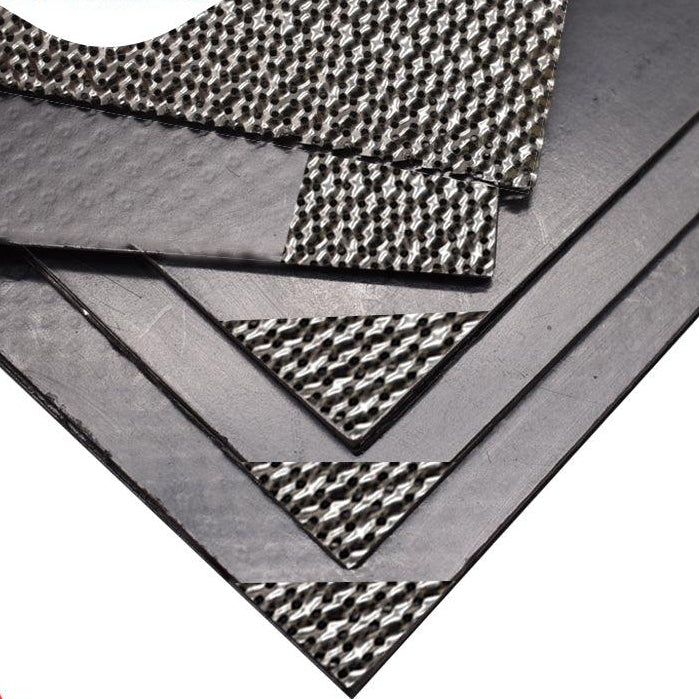

DEMIGRAPH® Type P1 Tanged Graphite Sheets with AISI 316 Stainless Steel Inserts
Our DEMIGRAPH® Type P1 Tanged Graphite Sheets are expertly engineered from premium DEMIGRAPH® graphite foils and reinforced with a 0.1 mm (0.004") thick tanged AISI 316 stainless steel insert. This advanced construction significantly enhances surface load capabilities and blow-out safety, ensuring reliable, long-term service across a wide range of industrial fluid sealing applications.
Key Features and Properties:
- Reinforced with AISI 316 Stainless Steel: Provides superior mechanical strength and blow-out safety.
- Exceptional Chemical and Thermal Resistance: Performs reliably under severe thermal and pressure fluctuations, with a temperature range of -195°C to 450°C (-319°F to 842°F), and up to 650°C (1202°F) in steam.
- Enhanced Blow-Out Safety: Designed to withstand high pressures and thermal stress.
- Excellent Impermeability to Gases and Fluids: Ensures effective sealing in demanding applications.
- Zero Sulfur and Halogen Content: Meets stringent safety standards, free from contaminants.
- High Recovery and Compressibility: Offers excellent adaptability to flange surfaces.
- Good Leakage Properties: Complies with DIN 3535-6 standards.
- Fire-Safe and Low Coefficient of Friction: Ensures safety and longevity under high temperatures.
Applications:
- Flange Connections: Ideal for piping, vessels, and machinery.
- Chemical and Petrochemical Industries: Provides reliable sealing in aggressive environments.
- Processing Industries: Ensures performance in high-pressure and high-temperature systems.
- Steam Systems: Suitable for applications involving steam and other high-temperature fluids.
Forms of Supply:
- Thicknesses: 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm (3/64", 1/16", 5/64", 1/8")
- Dimensions: 1000x1000 mm, 1500x1500 mm (40"x40", 60"x60")
- Insert Material: 0.1 mm (0.004") thick AISI 316 stainless steel
Operating Parameters:
- Compressibility: >30%
- Recovery: >14%
- Stress Resistance: >48 MPa (>7000 psi)
- Gas Permeability: ≤0.01 mg/m/s
Choose DEMIGRAPH® Type P1 Tanged Graphite Sheets with AISI 316 Stainless Steel Inserts for unmatched performance in fluid sealing and high-pressure applications. Custom dimensions and thicknesses are available to meet your specific needs.
