DEMIGRAPH® Pure Graphite Sheet

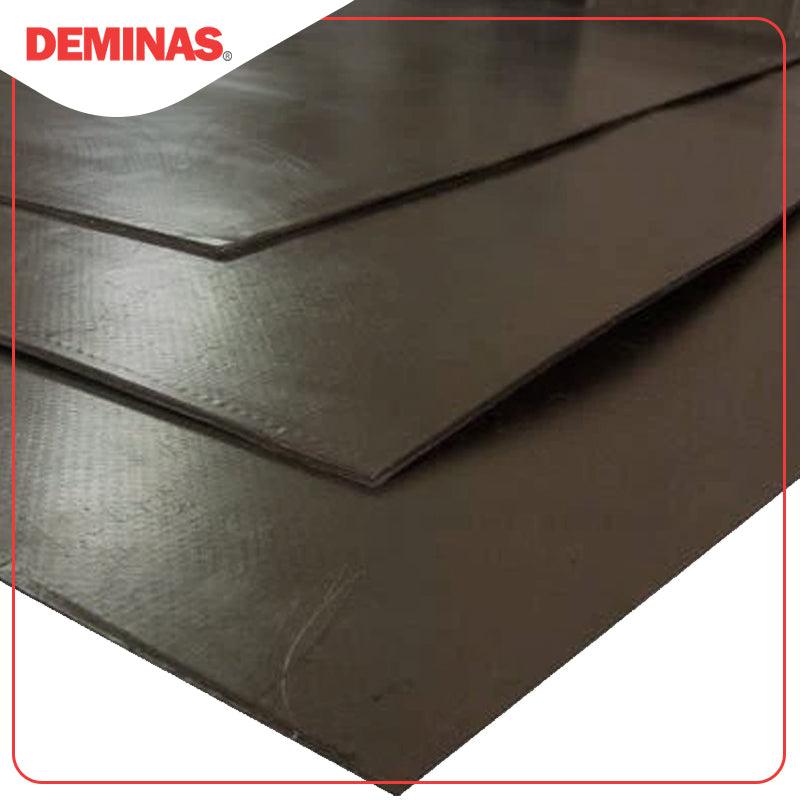

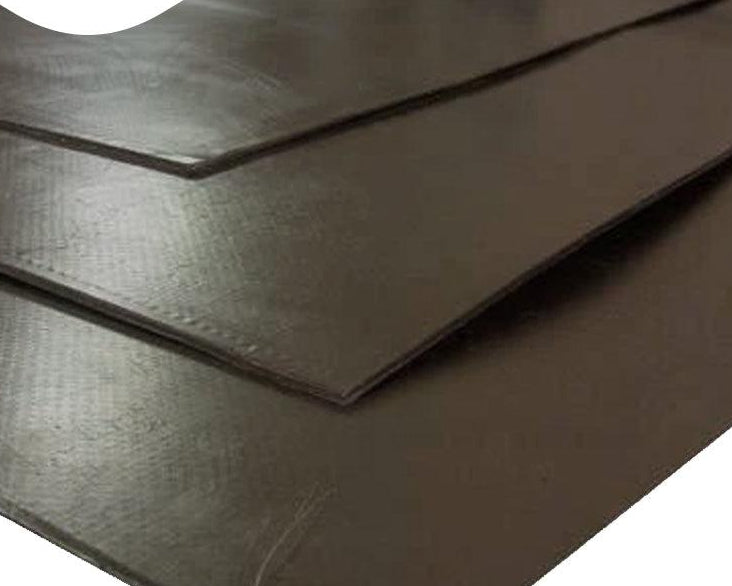

DEMIGRAPH® Type N Pure Graphite Sheets and Foils

Our DEMIGRAPH® Type N Pure Graphite Sheets and Foils are crafted from premium DEMIGRAPH® graphite materials, offering outstanding performance for a variety of demanding applications. These high-quality graphite foils and sheets are engineered for superior chemical and thermal resistance, making them perfect for use as gasket filler material in chemical, petrochemical, and nuclear industries.

Key Features:

• Exceptional Chemical and Thermal Resistance: DEMIGRAPH® graphite foils and sheets are designed to withstand temperatures from -195°C to 450°C (up to 650°C in steam), providing reliable performance in extreme conditions.
• Zero Sulfur and Halogen Content: Our graphite foils ensure superior safety and performance with no sulfur or halogen contamination.
• Customizable Dimensions: Available in thicknesses of 0.5, 0.76, 1.0, 1.5, and 2.0 mm, with standard sizes of 1000x1000 mm and 1500x1500 mm. Custom dimensions can be provided upon request.
• Conforms to Irregular Flange Surfaces: Ideal for applications requiring precise fits and complex designs.
• Outstanding Sealing Integrity and Anti-Sticking Properties: Meets ASTM F607 standards for fire safety and features no aging effect.

Applications:

• Gasket Filler Material
• Chemical and Petrochemical Industries
• Gas Supply Systems
• Nuclear Industry
• Shipbuilding
• Metal Production and Processing

Operating Parameters:

• Compressibility: 35-55%
• Recovery: ≥9%
• Stress Resistance: >48 MPa (>7000 psi)
• Gas Permeability: ≤0.01 mg/m/s

Choose DEMIGRAPH® Type N Pure Graphite Sheets and Foils for exceptional thermal and electrical conductivity and unparalleled performance in the most demanding environments.

Custom sizes available on request.
