PTFE Pure Gland Packing with Lubricant
PTFE Pure Gland Packing with Lubricant

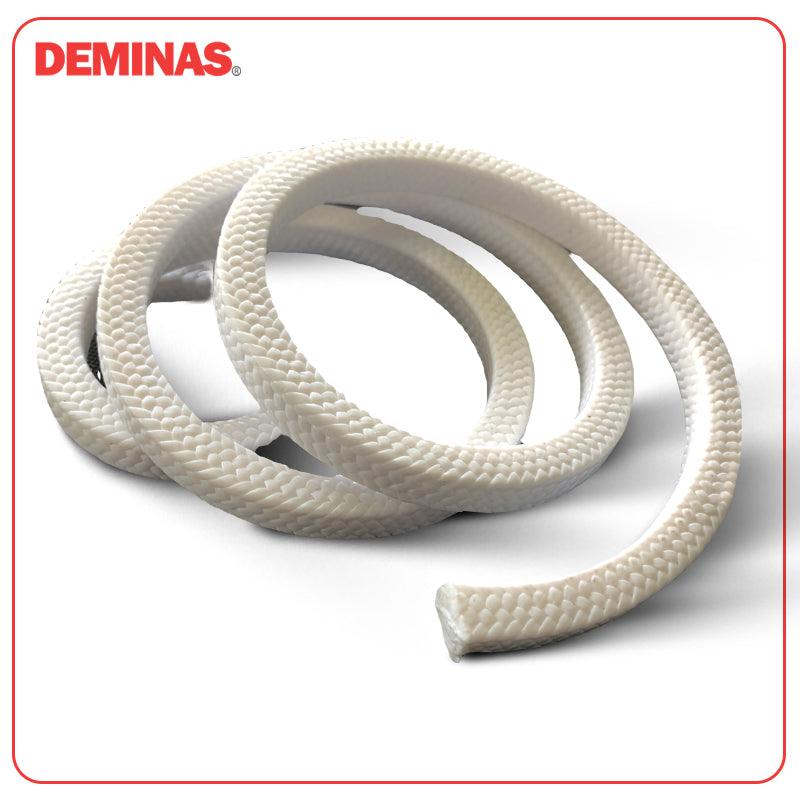

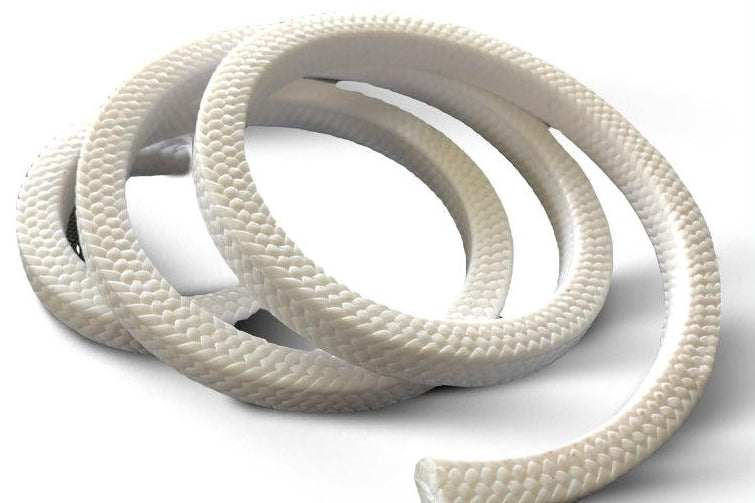

Pure PTFE Filament Braided Packing Impregnated with PTFE - STYLE 2222
The STYLE 2222 PTFE Pure Gland Packing with Lubricant is a top-tier sealing solution crafted for demanding industrial applications. Made from high-quality PTFE filament, each strand is individually impregnated with PTFE dispersion, ensuring exceptional flexibility, chemical resistance, and dimensional stability. This high-performance gland packing is ideal for use in pumps, valves, mixers, and other critical applications where reliability and durability are essential.
Key Features and Properties:
-
Pure PTFE Filament: Constructed from high-purity PTFE filament, the gland packing offers outstanding chemical resistance and dimensional stability. PTFE’s inherent properties ensure long-term durability and reliability.
-
PTFE Dispersion Impregnation: The individual impregnation of PTFE dispersion into each filament enhances the packing’s flexibility, compression resistance, and sealing efficiency, making it suitable for various industrial environments.
-
Chemical Inertness: Compatible with nearly all chemical compounds, excluding alkali metals and gaseous fluorine, this packing is highly versatile for diverse chemical processing applications.
-
Low Friction: Designed with a low friction coefficient, the packing minimizes wear and extends the lifespan of components, reducing maintenance and operational costs.
-
Temperature Specifications:
- Temperature Range: From -100°C (-148°F) to +280°C (536°F)
-
Pressure Resistance:
- Pump Applications: Up to 50 bar (725 psi)
- Reciprocating Mechanisms: Up to 150 bar (2175 psi)
- Valve Applications: Up to 250 bar (3625 psi)
-
Speed Capability: Effective up to 20 m/s (65.6 ft/s), suitable for high-speed applications.
-
pH Compatibility: Suitable for a broad pH range from 0 to 14, ensuring reliable performance in various chemical environments.
Applications:
- Pump Sealing: Highly recommended for pumps, offering effective sealing and reducing leakage.
- Reciprocating Mechanisms: Ideal for reciprocating applications, providing durability and reliable sealing under high pressures.
- Mixers: Effective for industrial mixers, ensuring smooth operation and preventing leaks.
- Valve Sealing: Excellent for valve applications, providing superior sealing performance in high-pressure and high-temperature conditions.
Customization Options:
- Size & Dimension: Available in a range of sizes and dimensions, customizable to fit specific machinery and application requirements.
- PTFE Dispersion: Adjustable to enhance performance based on specific operational conditions.
- Braid Density: Customizable to optimize flexibility, sealing efficiency, and wear resistance according to application needs.
Why Choose STYLE 2222: STYLE 2222 PTFE Pure Gland Packing with Lubricant offers superior sealing performance due to its high-purity PTFE filament and advanced PTFE dispersion impregnation. Its low friction, excellent chemical resistance, and flexibility make it a prime choice for a wide range of industrial applications. For tailored sealing solutions that meet your exact requirements, contact our technical team to access the most reliable and effective packing options available.
