Graphite Sheet Foil Flat Reinforced AISI 304L/316L

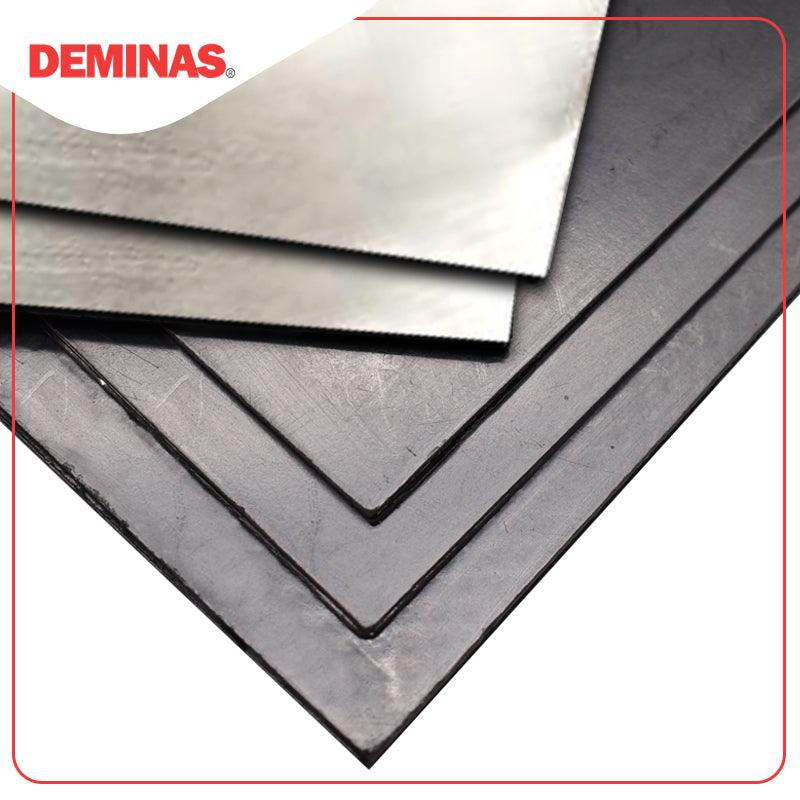

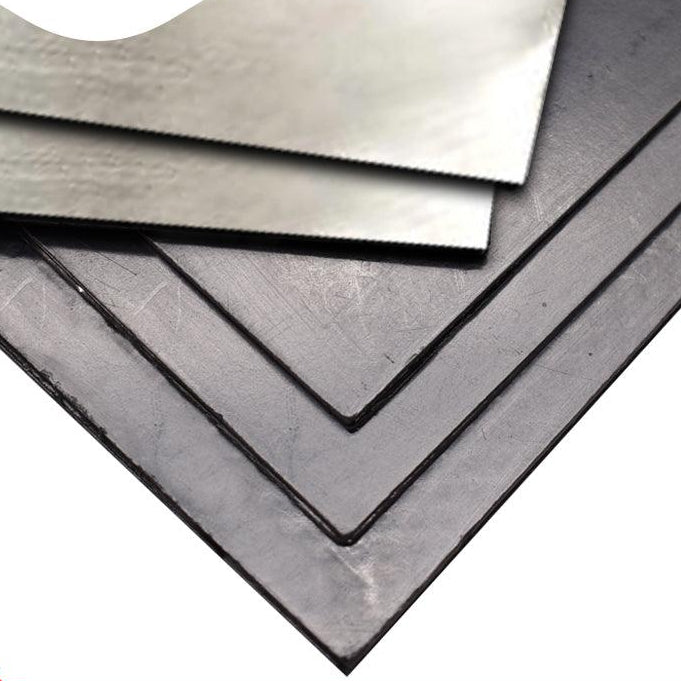

Graphite Sheet Foil Flat Reinforced with AISI 304L/316L Stainless Steel

Our Graphite Sheet Foil Flat Reinforced with AISI 304L/316L Stainless Steel combines high-quality graphite foil with a flat reinforcement of AISI 304L/316L stainless steel, offering superior mechanical strength and durability. This advanced graphite sheet foil is engineered for robust sealing solutions, excelling in high-pressure and high-temperature conditions. Ideal for industrial applications, it delivers consistent performance and reliability in demanding environments.

Key Features and Properties:

• Reinforced with AISI 304L/316L Stainless Steel: Enhances mechanical strength and blow-out resistance of the graphite foil for demanding sealing applications.
• Exceptional Thermal and Chemical Resistance: Withstands temperatures from -195°C to 450°C (-319°F to 842°F), and up to 650°C (1202°F) in steam, making it suitable for high-temperature applications.
• High Impermeability to Gases and Fluids: Ensures reliable sealing for various industrial applications.
• Suitable for Oxidizing and Corrosive Media: Ideal for chemical and petrochemical industries requiring effective sealing solutions.
• Enhanced Blow-Out Resistance: Provides reliable performance under high pressures and thermal stress, ensuring safety and longevity.
• Low Sulfur and Halogen Content: Meets stringent safety and environmental standards for industrial sealing materials.
• High Recovery and Compressibility: Adapts to irregular surfaces and maintains excellent sealing integrity.
• Good Leakage Control: Provides minimal leakage, complying with industry standards for gasket performance.
• Fire-Resistant and Low Coefficient of Friction: Ensures durability and safety under extreme conditions.
• Resistant to Aging and Creep Relaxation: Maintains long-term performance and sealing efficiency.
• Easy to Handle and Install: User-friendly for quick and efficient installation in various applications.

Applications:

• Flange Connections: Perfect for sealing piping, vessels, and machinery, ensuring robust and reliable performance.
• Chemical and Petrochemical Industries: Ideal for applications involving aggressive substances and high temperatures.
• High-Temperature Applications: Suitable for steam systems and other environments with extreme heat.
• Industrial Sealing Solutions: Provides high-performance sealing for a wide range of industrial processes.

Forms of Supply:

• Thicknesses: 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm (3/64", 1/16", 5/64", 1/8")
• Dimensions: 1000x1000 mm, 1500x1500 mm (40"x40", 60"x60")
• Reinforcement: Flat AISI 304L/316L stainless steel

Operating Parameters:

• Compressibility: >30%
• Recovery: >14%
• Stress Resistance: >48 MPa (>7000 psi)
• Gas Permeability: ≤0.01 mg/m/s

Choose Graphite Sheet Foil Flat Reinforced with AISI 304L/316L Stainless Steel for superior performance in high-pressure, high-temperature, and chemically aggressive environments. Custom dimensions and thicknesses are available to meet your specific industrial sealing needs.
