Expanded Graphite Gland Packing Reinforced Inconel

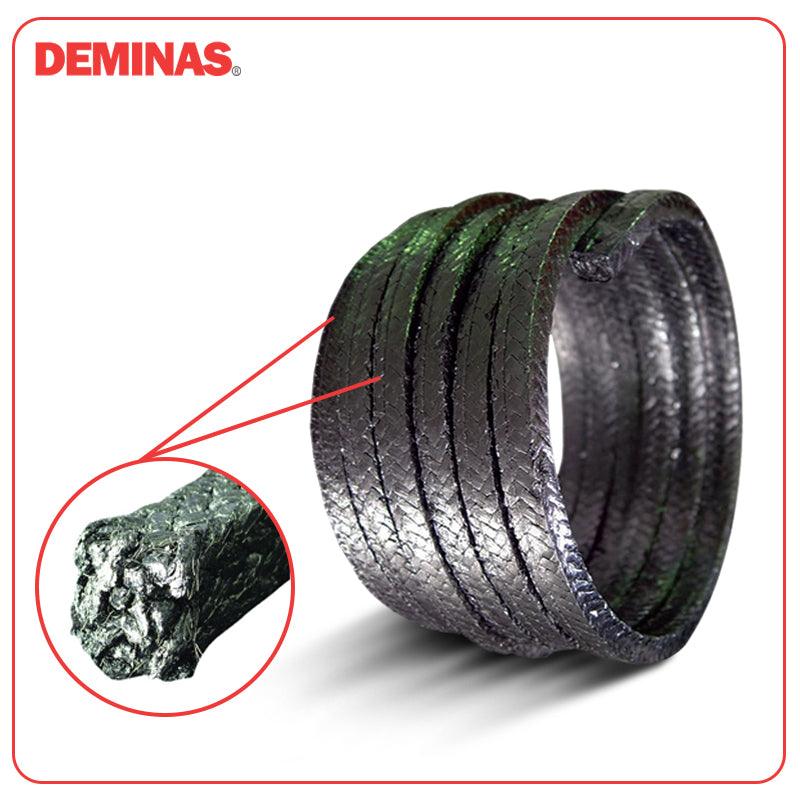

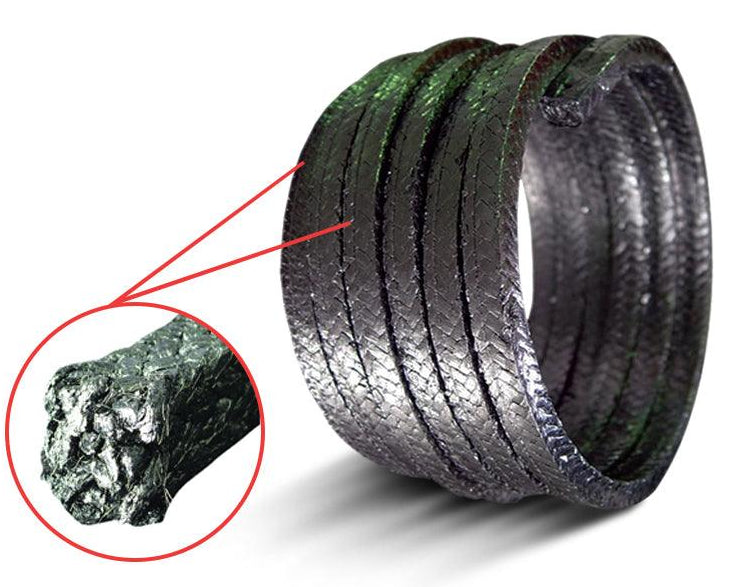

Pure Flexible Graphite Foil Braided Gland Packing with Inconel Wire Reinforcement - STYLE 3300R

Expanded Graphite Gland Packing Reinforced with Inconel Wire is engineered for high-performance sealing in extreme industrial conditions. This advanced gland packing combines pure flexible graphite foil with multi-Inconel wire reinforcement, offering superior durability and performance. Free from fiber carriers, it excels in extrusion resistance and high-pressure applications.

Key Features and Properties:

• Pure Flexible Graphite Foil: The packing is made from high-quality, pure flexible graphite foil, which provides excellent thermal conductivity and high-temperature resistance. Its flexible nature ensures a tight, reliable seal even in challenging conditions.

• Inconel Wire Reinforcement: Multi-Inconel wire is braided throughout the graphite foil, enhancing the packing’s structural integrity and resistance to high pressures and temperatures. Inconel reinforcement increases the packing's durability and extends its service life.

• No Fiber Carrier: The absence of a fiber carrier eliminates the need for anti-extrusion rings, allowing the packing to handle higher pressures and temperatures while maintaining optimal performance.

• Temperature Specifications:

  • Maximum Temperature: Up to 650°C (1202°F)
  • Minimum Temperature: -250°C (-418°F)
  • Maximum Steam Temperature: 630°C (1166°F)
  • Oxidizing Media Temperature: Up to 450°C (842°F)

• Pressure Resistance:

  • Pump Applications: Up to 30 bar (435 psi)
  • Reciprocating Mechanisms: Up to 100 bar (1450 psi)
  • Valve Applications: Up to 300 bar (4350 psi)

• Speed Capability: Effective up to 8 m/s (26.2 ft/s), suitable for high-speed operations.

• pH Compatibility: Effective across a broad pH range from 0 to 14, ensuring versatility in various chemical environments.

• High Extrusion Resistance: The unique construction with Inconel wire reinforcement provides exceptional resistance to extrusion, making it ideal for high-pressure applications.

Applications:

• Reciprocating Mechanisms: Highly recommended for reciprocating applications, offering reliable sealing and durability.
• Mixers: Suitable for sealing in industrial mixers, maintaining efficiency and preventing leaks.
• Valve Sealing: Ideal for high-pressure and high-temperature valve applications, ensuring superior performance.
• Pump Sealing: A secondary recommendation for pump applications, providing effective sealing under moderate pressure conditions.

Customization Options:

• Size & Dimension: Tailored to meet specific application requirements.
• Wire Reinforcement: Customizable to suit various pressure and temperature conditions.
• Braid Structure: Optimized for maximum extrusion resistance and performance.

Why Choose STYLE 3300R: STYLE 3300R Expanded Graphite Gland Packing with Inconel Wire Reinforcement offers unparalleled sealing performance for demanding industrial applications. Its high-quality graphite foil and Inconel wire reinforcement ensure exceptional durability, extrusion resistance, and reliability in extreme temperatures and pressures. For customized solutions that meet your specific sealing needs, contact our technical team to benefit from the highest standards of performance and reliability.
