Expanded Graphite Gland Packing

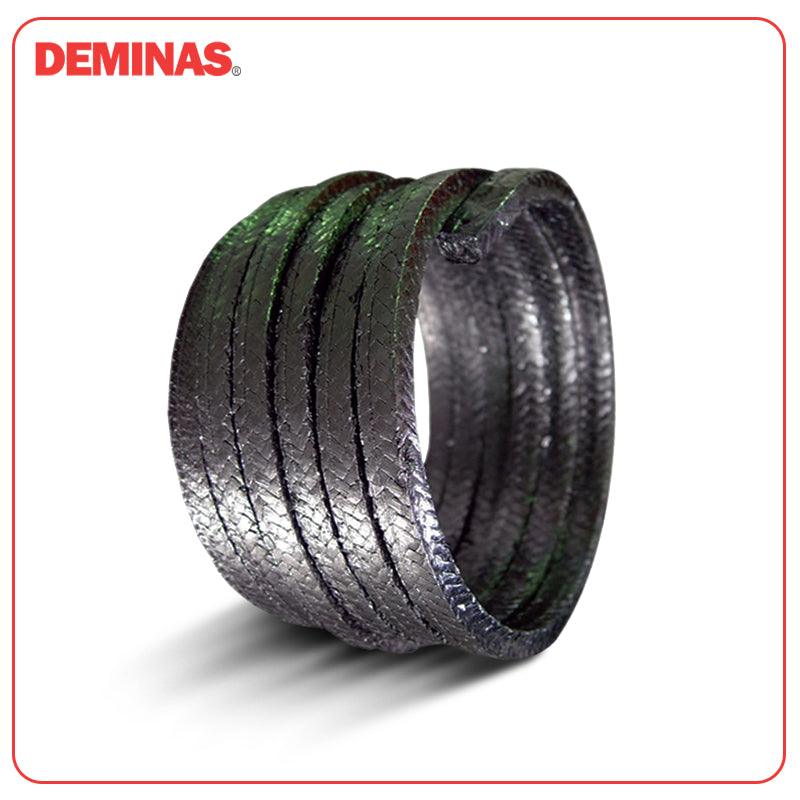

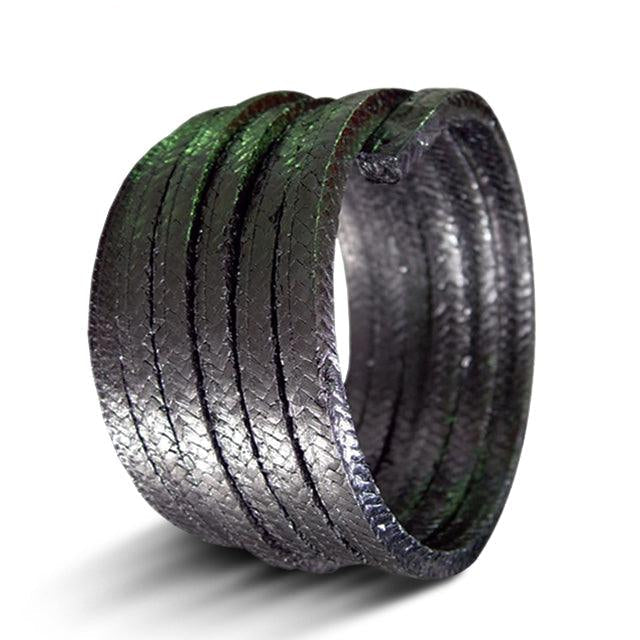

Expanded Graphite Yarn Braided Gland Packing with High Carbon Fiber - STYLE 3300

Expanded Graphite Gland Packing with High Carbon Fiber is engineered for exceptional performance in demanding industrial environments. This high-quality braided packing utilizes expanded graphite yarn, reinforced with high carbon fiber, and includes a proprietary blocking agent. This combination delivers outstanding durability, low friction, and superior chemical resistance.

Key Features and Properties:

• Expanded Graphite Yarn: The core material of the packing, expanded graphite yarn, provides excellent thermal conductivity and high-temperature performance. Its expanded structure ensures effective sealing and low friction, reducing wear and extending the packing’s service life.

• High Carbon Fiber Reinforcement: High carbon fiber is incorporated to enhance strength and flexibility, making the packing highly resistant to deformation under pressure and temperature extremes. This reinforcement also contributes to the packing’s durability and long-term reliability.

• Proprietary Blocking Agent: The packing is impregnated with a proprietary blocking agent that enhances its resistance to extrusion, improves sealing performance, and increases the packing’s overall durability.

• Temperature Specifications:

  • Maximum Temperature: Up to 650°C (1202°F)
  • Minimum Temperature: -250°C (-418°F)
  • Maximum Steam Temperature: 630°C (1166°F)
  • Oxidizing Media Temperature: Up to 420°C (788°F)

• Pressure Resistance:

  • Reciprocating Mechanisms: Up to 100 bar (1450 psi)
  • Valve Applications: Up to 220 bar (3190 psi)

• Speed Capability: Effective up to 10 m/s (32.8 ft/s), suitable for high-speed operations.

• pH Compatibility: Effective across a broad pH range from 0 to 14, ensuring versatility in various chemical environments.

• Low Friction: Minimizes shaft drag and reduces wear, promoting smooth operation and extending the packing’s service life.

Applications:

• Reciprocating Mechanisms: Highly recommended for reciprocating applications, where it offers reliable sealing and reduces leakage.
• Mixers: Suitable for sealing in industrial mixers, maintaining operational efficiency and preventing leaks.
• Valve Sealing: Ideal for valves, providing superior sealing performance in high-pressure and high-temperature conditions.

Customization Options:

• Size & Dimension: Tailored to fit specific equipment requirements.
• Blocking Agent: Customized to enhance performance under specific conditions.
• Braid Structure: Adjusted for optimal sealing and durability.
• Thermal Properties & Color: Customizable to meet specific operational needs and aesthetic preferences.

Why Choose STYLE 3300: STYLE 3300 Expanded Graphite Gland Packing with High Carbon Fiber delivers top-tier sealing performance for critical industrial applications. Its advanced design combines expanded graphite yarn with high carbon fiber reinforcement to offer superior chemical resistance, low friction, and excellent thermal performance. Contact us for customized solutions that ensure maximum efficiency, reliability, and longevity in your demanding applications.
