Gland Packing

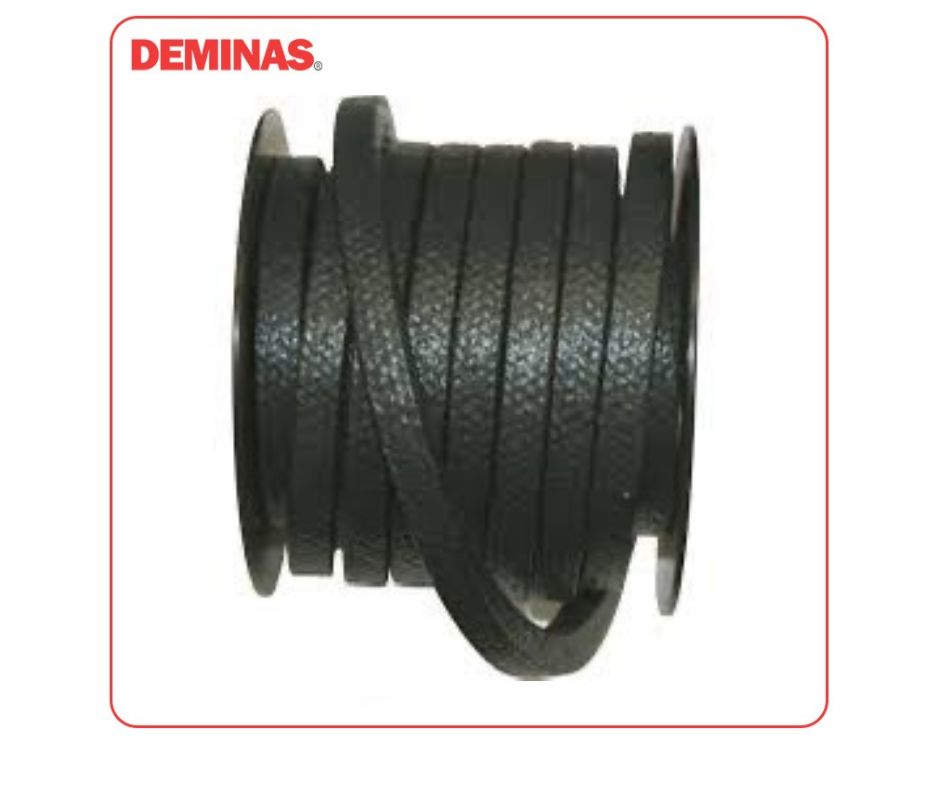

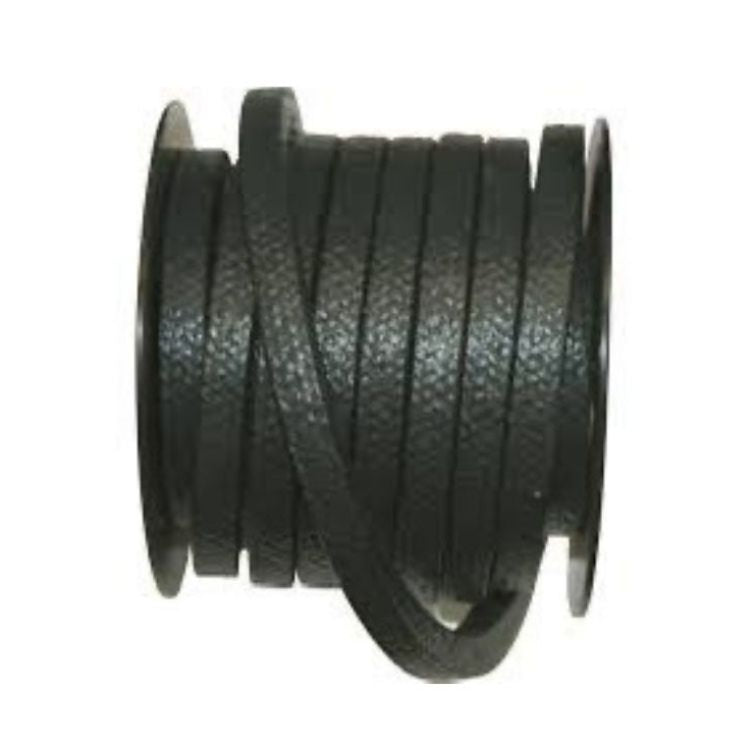

Acrylic Graphite Gland Packing

Braided reinforced acrylic fibre gland packing impregnated with graphite and lubricant for self-lubrication and heat dissipation. Rated to 250°C, 50 bar on pumps and 100 bar on valves, across a pH range of 2 to 12. Suits pumps, valves, mixers and agitators at medium pressure and temperature.

£15.00 GBP

ex. VAT Sale Sold out

In stock · ships same day before 2pm

Need a different size or bulk quantity? Request a cut-to-size quote →

Specifications

Style STYLE 3400

Material Reinforced acrylic fibre impregnated with graphite & lubricant

Temperature Up to 250°C

Pressure 50 bar (pump), 100 bar (valves)

Speed Up to 12 m/s

pH range 2 to 12

Full description

STYLE 3400 Acrylic Graphite Gland Packing

Product Description

Acrylic Graphite Gland Packing – STYLE 3400 is a high-performance braided sealing solution manufactured from reinforced acrylic fiber impregnated with graphite and lubricant for enhanced thermal conductivity, reduced friction, and improved wear resistance. It is designed for pumps, valves, mixers, and rotating equipment operating under medium pressure and temperature conditions. The graphite impregnation provides excellent self-lubrication and improved heat dissipation for longer service life.

Key Features & Properties

Reinforced acrylic fiber construction
Graphite impregnated for low friction and heat transfer
Excellent flexibility and compressibility
Good chemical resistance
Reduced shaft wear and leakage
Suitable for dynamic and static sealing applications
Long service life with minimal maintenance

Technical Specifications

Parameter	Specification
Material	Reinforced Acrylic Fiber
Impregnation	Graphite & Lubricant
Maximum Temperature	250°C
Pressure (Pump)	50 bar
Pressure (Valve)	100 bar
Rotary Speed	Up to 12 m/s
pH Range	2 – 12
Density	≥1.20 g/cm³

Applications

Pumps
Valves
Mixers
Agitators
Rotary equipment
Industrial sealing systems

Advantages

Excellent sealing efficiency
Low coefficient of friction
High flexibility
Good thermal conductivity
Easy installation
Economical sealing solution
